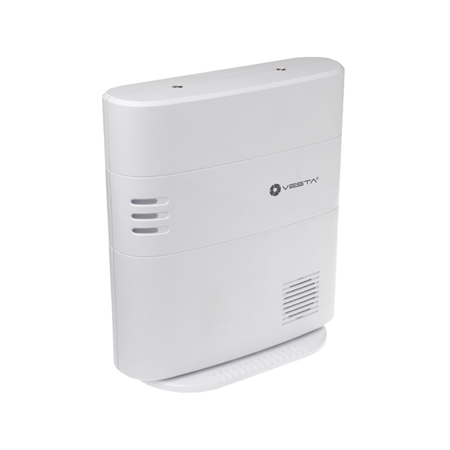

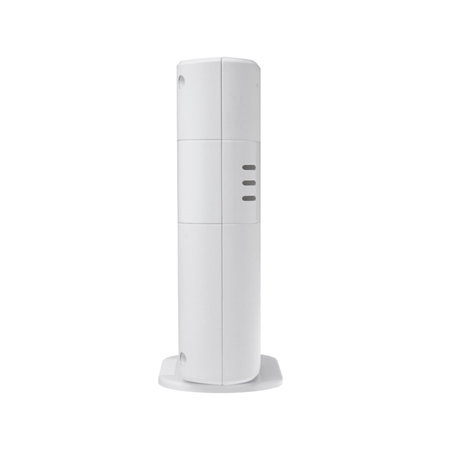

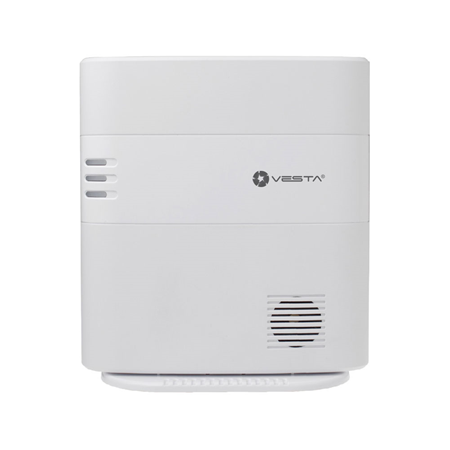

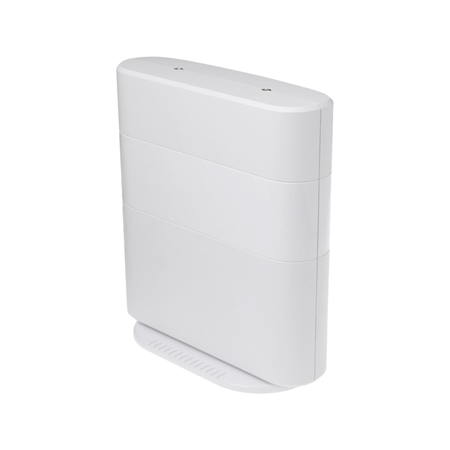

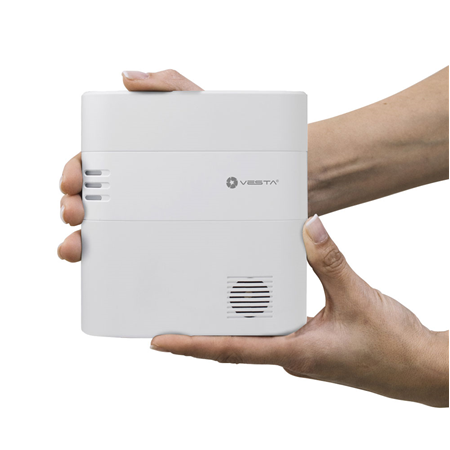

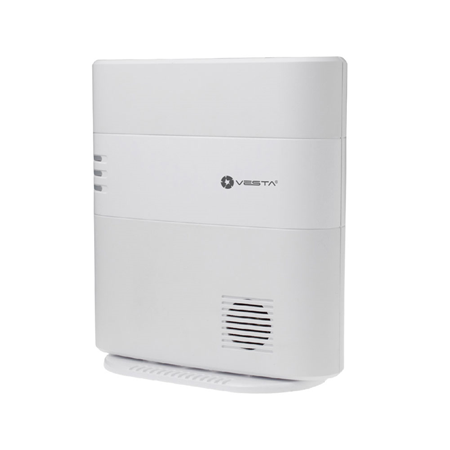

Gateway 640-zone IP + 4G home security system via radio from the SmartSeries range

VESTA-047N-SF1
PKB1HSGWM8EX4GSL02

Gateway VESTA SmartSeries Home Security Systems
640 zones via radio
240 users, 8 partitions
Supports RF 868-F1 (up to 2 km) and Z-Wave devices
Compatible with PIRCAMS HD SF1 protocol
TCP/IP and 4G connectivity (optional WiFi pin)
Integral solution with remote management
Domotics and live monitoring
Supports external battery
Includes Mini USB quick connector for external organic battery
Sending reports via CID/SIA, Email, SMS and Push. iOS and Android App and web browser
Compatible with Google Home and Alexa
EN50131 Grade 2

640 zonas

8 particiones

Vía radio SF1

Vía radio F1

Conexión IP

Conexión 2G

Conexión 4G

Z-Wave

220 V AC

Z-Wave compatibiliteit

8 partities

EN50131 graad 2 gecertificeerd

TCP/IP-communicatie

2G-connectiviteit

Installatie binnenshuis

4G connectiviteit

Draadloos F1

Draadloos SF1

640 zones

USB aansluiting

Ingebouwde sirene

OTA update

Pieptonen voor in- en uitgangsvertraging

Batterijen inbegrepen

Ondersteunt maximaal 24 IP camera’s

Ondersteunt maximaal 16 PIRCAM

Meerdere geluiden

640 radio zones
240 users
8 partitions
TCP/IP and 4G communication (optional WiFi pin)
Incorporates 4G module
Supports RF 868-F1 and Z-Wave devices
Compatible with HD transmission devices (PIRCAMS) with SF1 protocol
Amplified fast connection for external GPRS antenna (not included, VESTA-274 recommended)
Reporting Methods: CID/SIA, Email, SMS, Push Notification
Programming methods: Web and App
Live visual verification
Home automation
Energy management
24/7 emergency monitoring
Remote management
Built-in siren
Z-Wave Protocol: Z-Wave Plus 500, 868.40MHz (EU)
RF Frequency: 868MHz
Power supply: 12V, 1A
Prepared to support high capacity external battery(DEM-8M-BACKUP and DEM-9M-BACKUP)
Mini USB quick connector included for external organic battery connection
Operating temperature from -10°C ~ +45°C
Relative humidity: Up to 85% (non-condensing)
Dimensions: 140 (W) x 150 (H) x 42 mm
Certified EN50131 Grade 2, Environmental Class II
VESTA's Gateway via radio is compatible with Google Home and Alexa
Integration with Fibaro automatic devices (Fibaro Dimmer 2, Roller Shutter 3, Smart Module, Single Switch 2).
