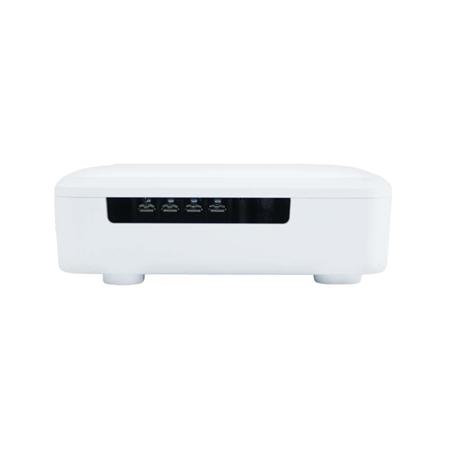

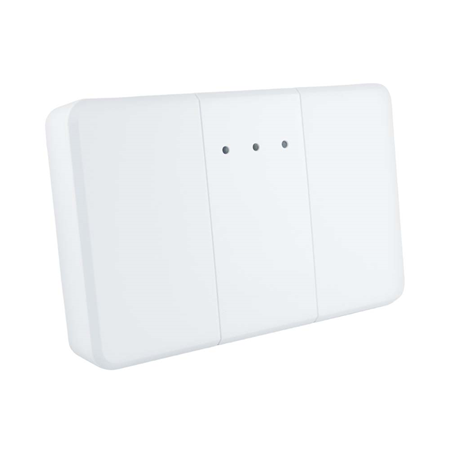

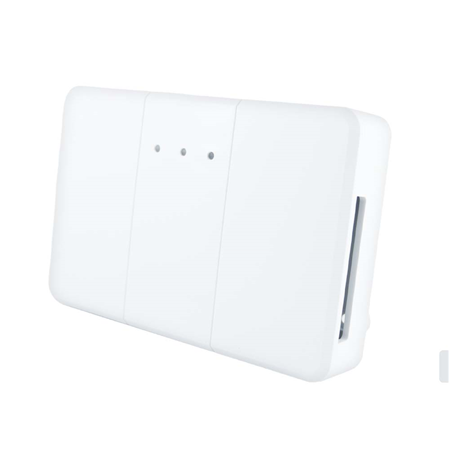

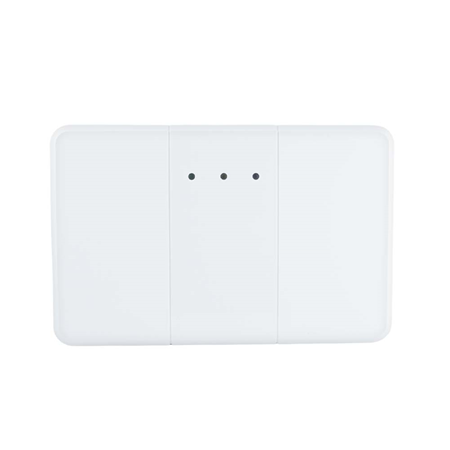

Radio wiring converter
VESTA-027
- Wired to wireless zone converter for VESTA system
- Converts 9 wired zones into wireless zones
- Allows power supply to detectors
- Terminal connection
- Allows resistance values between 1K and 10K
- Self-adjusting to the wired resistance
- Tamper tamper
- Back-up battery included: AAA Ni-Mh rechargeable battery pack, 750 mAh
- EN50131 Grade 2 certified
Highlights
640 zonas
8 particiones
Vía radio SF1
Vía radio F1
Conexión IP
Conexión 2G
Conexión 4G
Z-Wave
12 V DC
Grade 2 EN50131 certified
Indoor installation
F1 wireless
Batteries included
Key features
Converts 9 wired zones to wireless technology
Compact and lightweight for easy installation
Excellent stability with high sensitivity
4-pin terminal block for power supply

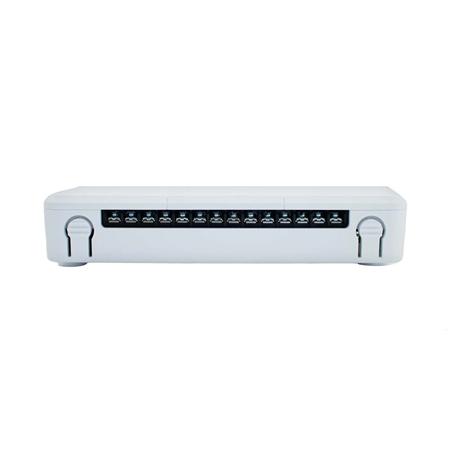

14-pin terminal block for all 9 zones
Tamper protection
Low battery notification
Periodic supervisory signals to verify system integrity
LED indicator
Ideal for retrofitting existing hardwired security systems
EN50131 certification (Grade 2)
SpecificationsRF Frequency: 868MHz
Power supply: 12V, 1A
Allows resistance values between 1K and 10K
Self-adjusting to the wired resistor
Battery backup included: Rechargeable AAA Ni-Mh battery pack, 750 mAh
Operating temperature from -10°C ~ +45°C
Relative humidity up to 85% (non-condensing)
Dimensions: 163 (W) x 105 (H) x 30 mm
Specifications
| Power | 12V DC |
|---|---|
| System | Wireless |
| Module type | Via radio |
| Colour | White |
| Certificate | Grade 2 |
| Installation environment | Indoor |
| Protocol | F1 |
| Battery life | 12 hours (backup) |
| OTA Upgrade | No |
| Remote configuration | Yes |
| Batteries | Included |
| On board Hardwired Inputs / Zones | 9 |
| Battery type | NI-MH AAA |
