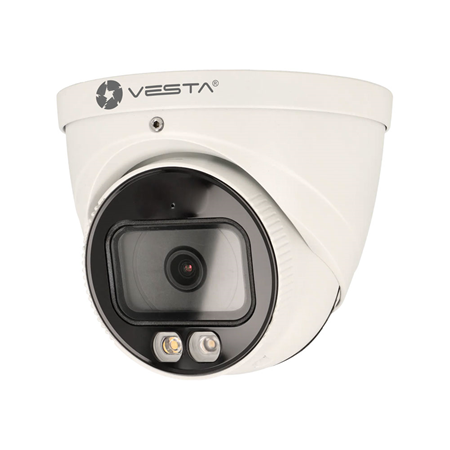

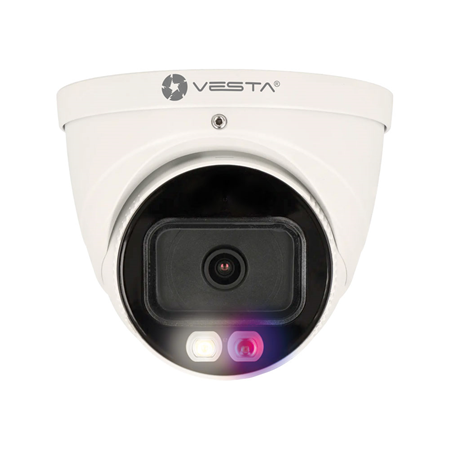

Outdoor 8MP VESTA Advanced Video Active Deterrence Magic Color IP dome
IPC-T38-L-MC-PV
- Dome IP VESTA Advanced Video Active Deterrence Magic Color for outdoor use
- 8MP@25ips and H.265+
- White light 40 m
- Fixed lens 2.8 mm
- WDR 120 dB and digital WDR
- Motion detection, intrusion and line crossing with classification of people and vehicles
- Active deterrence with sound and light alarm
- Bidirectional audio
- MicroSD slot up to 256GB
- IP67 protection
- 12V DC or PoE power supply
- NDAA Certification
Highlights
640 zonas
8 particiones
Vía radio SF1
Vía radio F1
Conexión IP
Conexión 2G
Conexión 4G
Z-Wave
8 MP resolution
12 V DC
Supports PoE
IP67 protection rating
Digital WDR
True WDR 120 dB
H.265 video format
Supports PoE
Supports MicroSD card
P2P access
TCP/IP communication
Suitable for outdoor use
White light illumination
Perimeter protection
Built-in siren
Integrated AI
NDAA compliant
Human and vehicle detection
Key features
- 1/2.7" 8 megapixel CMOS sensor
- Resolution up to 8MP (3840x2160)
- Day/Night mode
- Magic Color technology for color images in any environment
- 40 meter white light
- 0.006 lux and 0 lux with illumination activated
- Fixed lens 2.8 mm
- H.265+, H.264+, H.265, H.264 video formats
- Stream 1: 8MP@25 ips
- Stream 2: D1@25 fps
- Stream 3: 720P@25 ips
- BLC, HLC, 120 dB WDR, digital WDR, 3D-NR and mirror image modes
- White balance
- Automatic and manual gain control
- 4-zone video sensor
- 4-zone privacy mask
- White light deterrence
- Arming/disarming available from camera menu
- Motion detection with person and vehicle classification
- Intrusion detection with person and vehicle classification
- Line crossing detection with person and vehicle classification
- Integrated audible and visual alarm
- Blue and red lights for active deterrence
- Integrated microphone
- Built-in speaker with audio clips and two-way audio
- MicroSD card slot up to 256GB (card not included)
- Reset button
- RJ45 10/100 Base-T network interface
- Network protocols TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP and SMTP
- Onvif, CGI, P2P, SDK and API support
- Compatible with IE8 and later, Chrome and Firefox browsers
- Management software
- Compatible with IOS and Android mobile devices
- 12V DC (±30%) or 802.3af PoE power supply
- Power consumption of 2.8 W in basic operation and 5.5 W max.
- Storage temperature from -40°C ~ +60°C
- Operating temperature -30°C ~ +60°C (-30°C ~ +60°C)
- Operating relative humidity less than 95%
- IP67 degree of protection
- Metal housing
- White color
- Dimensions: Ø122 x 110 mm
- Net weight: 630 g
- IP Dome VESTA Advanced Video Active Deterrence IPC-T38-L-MC-PV (IPC-T38-L-MC-PV) 8MP outdoor IP dome Magic Color
- Equipment complies with the NDAA requirements of the National Defense Authorization Act Section 889.
Specifications
| Resolution | 8MP |
|---|---|
| Power | 12V DC, PoE |
| Audio | Microphone, Speaker, Siren, Two-way |
| IR Distance | No |
| Ingress protection | IP67 |
| Lens | 2.8 mm |
| Special Protection | No |
| Sensor | 1/2.7" CMOS |
| StarLight | No |
| WDR (Backlight) | D-WDR, WDR (120dB) |
| Codec | H.264, H.264+, H.265, H.265+ |
| PoE | PoE |
| SD Slot | Yes |
| Connectivity | P2P, IP |
| Colour | White |
| Installation environment | Outdoor |
| Material | Metal |
| Alarm channels | No |
| Lighting | White light |
| Intelligent functions | Perimeter protection, SMD |
| Compatibility | Onvif |
| Series | Vesta Advanced Video, 3in1 |
| On Board Siren | Yes |
| Onboard AI | Yes |
| Certificate | NDAA |
| AI Series | Magic Color, VESTA Lite AI |
