IPC-T38-A180-PV
IPC-T38-A180-PV

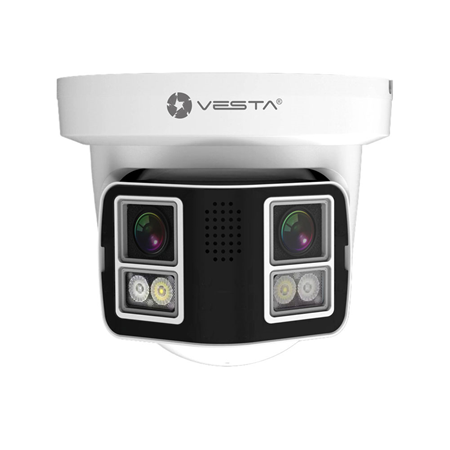

8MP panoramic Smart Dual Light Active Deterrence Magic Color Ultra AI IP dome for outdoor use
VESTA Advanced Video panoramic IP dome with Magic Color technology. 8MP@25/30ips and H.265+. 0.007/0.0004 lux F1.6. Smart Dual Light with IR 40m and warm light 40m. Fixed lens 3.6 mm. WDR 120 dB and 3D-NR. Perimeter protection, face detection, abandoned/lost objects and heat map. Intelligent motion detection (SMD). Active deterrence. Microphone, speaker and 1 RCA audio input/1 output. 1 input/1 alarm output. MicroSD slot up to 256 GB. RS485, RJ45 and Onvif, IP67 protection and PoE. NDAA Certification
Specifications
- VESTA Advanced Video Panoramic IP Dome with Magic Color technology
- Two 4 megapixel 1/1.8" CMOS sensors
- Resolution up to 8MP (5120x1520)
- Day/night mode
- Smart Dual LightIR light 40 meters, Warm light 40 meters
- 0.007 lux F1.6 (color), 0.0004 lux F1.6 (B/W), 0 lux with activated illumination
- Fixed lens 3.6 mm
- Viewing angle: 180° (H)
- H.265+, H.264+, H.265, H.264 video formats
- Stream 1: 8MP (5120x1520) (1~25/30 ips)
- Stream 2: 2048x576 (1~25/30 ips)
- Stream 3: 2048x576 (1~25/30 ips)
- Image modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror.
- White balance
- Automatic and manual gain control
- 4-zone video sensor
- Perimeter protection with line-crossing detection and intrusion detection
- Supports person and vehicle classification
- Loitering detection
- People gathering
- Unauthorized parking detection
- Face detection
- Abandoned and lost object detection
- Heat map
- Intelligent Motion Detection (SMD)
- Integrated audible and luminous alarm (blue and red lights)
- Alarm arming and disarming
- Built-in microphone
- Built-in speaker
- 1 RCA audio input / 1 output
- MicroSD card slot up to 256 GB (card not included)
- 1 input / 1 output alarm
- RS485 port
- Reset button
- Network interface: RJ45 (10/100 Base-T)
- Network protocols: TCP/IP, UDP, HTTP, IGMP, ICMP, DHCP, RTP/RTSP, DNS, DDNS, FTP, NTP, PPPOE, UPNP, SMTP
- Onvif, CGI, P2P, SDK and API support
- Compatible with IE8 and later, Edge, Chrome and Firefox browsers
- Management software
- Compatible with IOS and Android mobile devices
- Power supply: 12V DC (±30%) / PoE (802.3af)
- Power consumption: 4W (basic), 14W (maximum)
- Storage temperature -40°C ~ +60°C
- Operating Temperature -30°C ~ +60°C
- Operating relative humidity <95%.
- Degree of protection IP67
- Metal housing
- Dimensions: Ø124 x 137 mm
- Net weight: 0.99 kg
- IP Panoramic 8MP Magic Color IP Dome IPC-T38-A180-PV (IPC-T38-A180-PV)
- NDAA: equipment complies with the requirements of the National Defense Authorization Act (Section 889).
